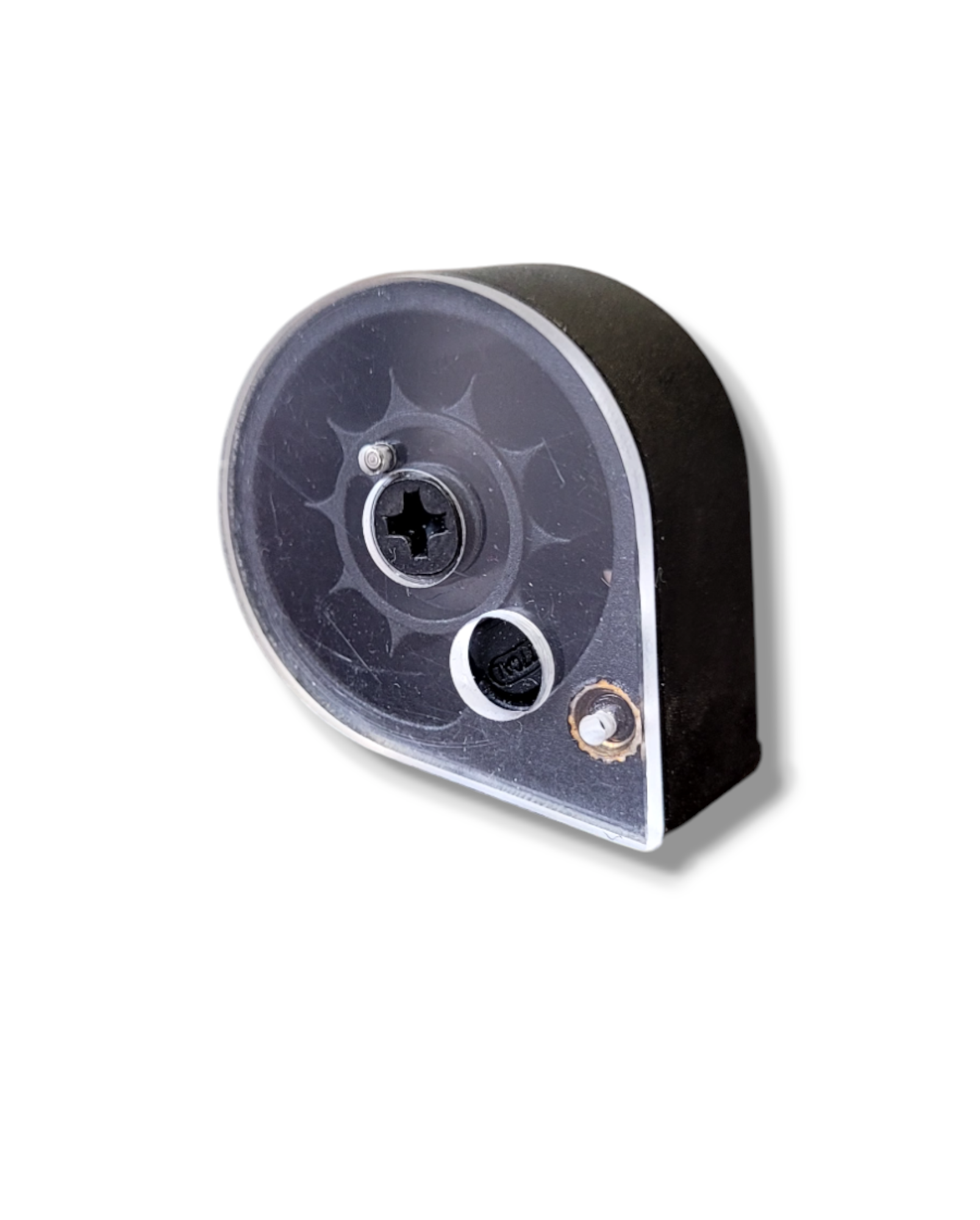

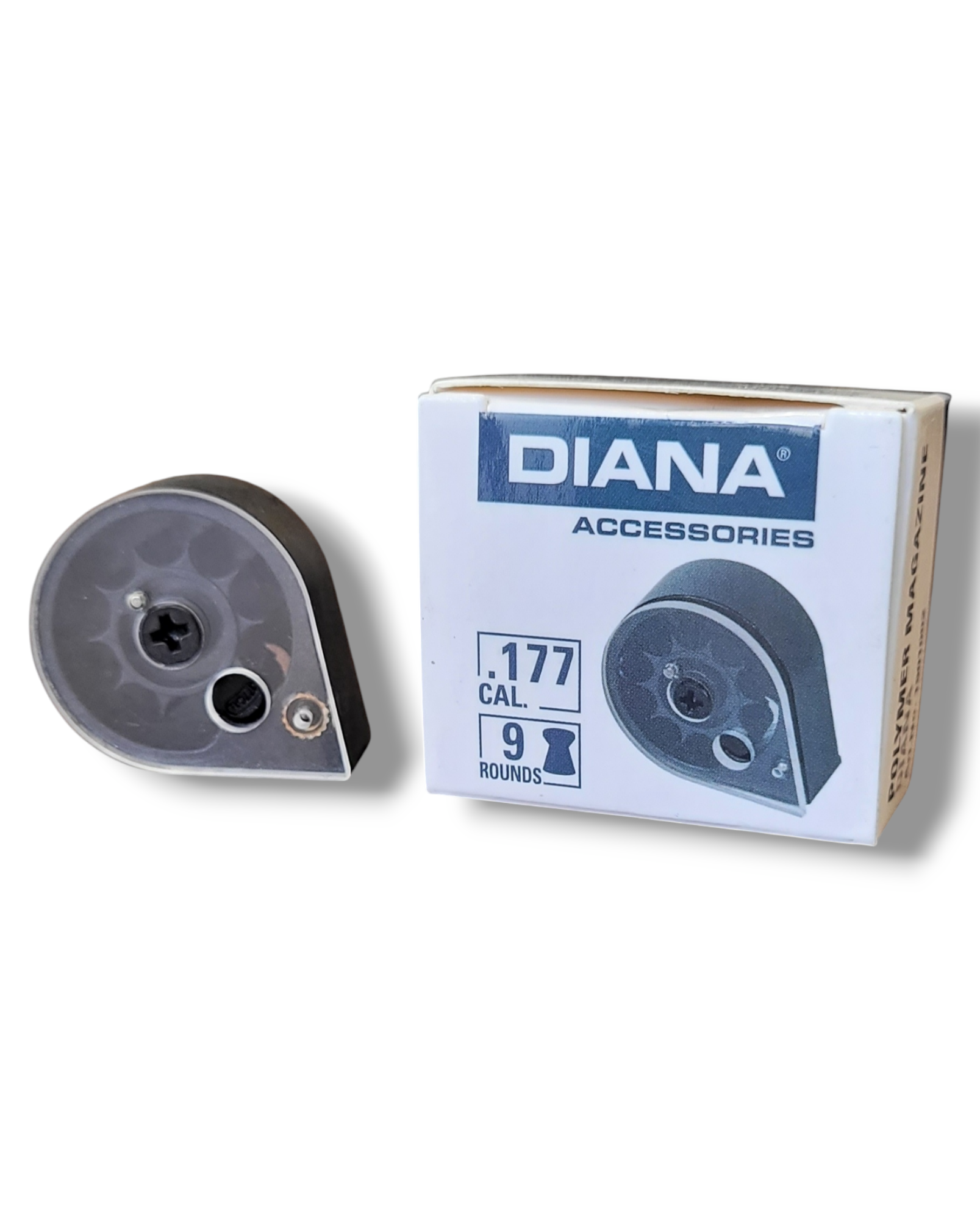

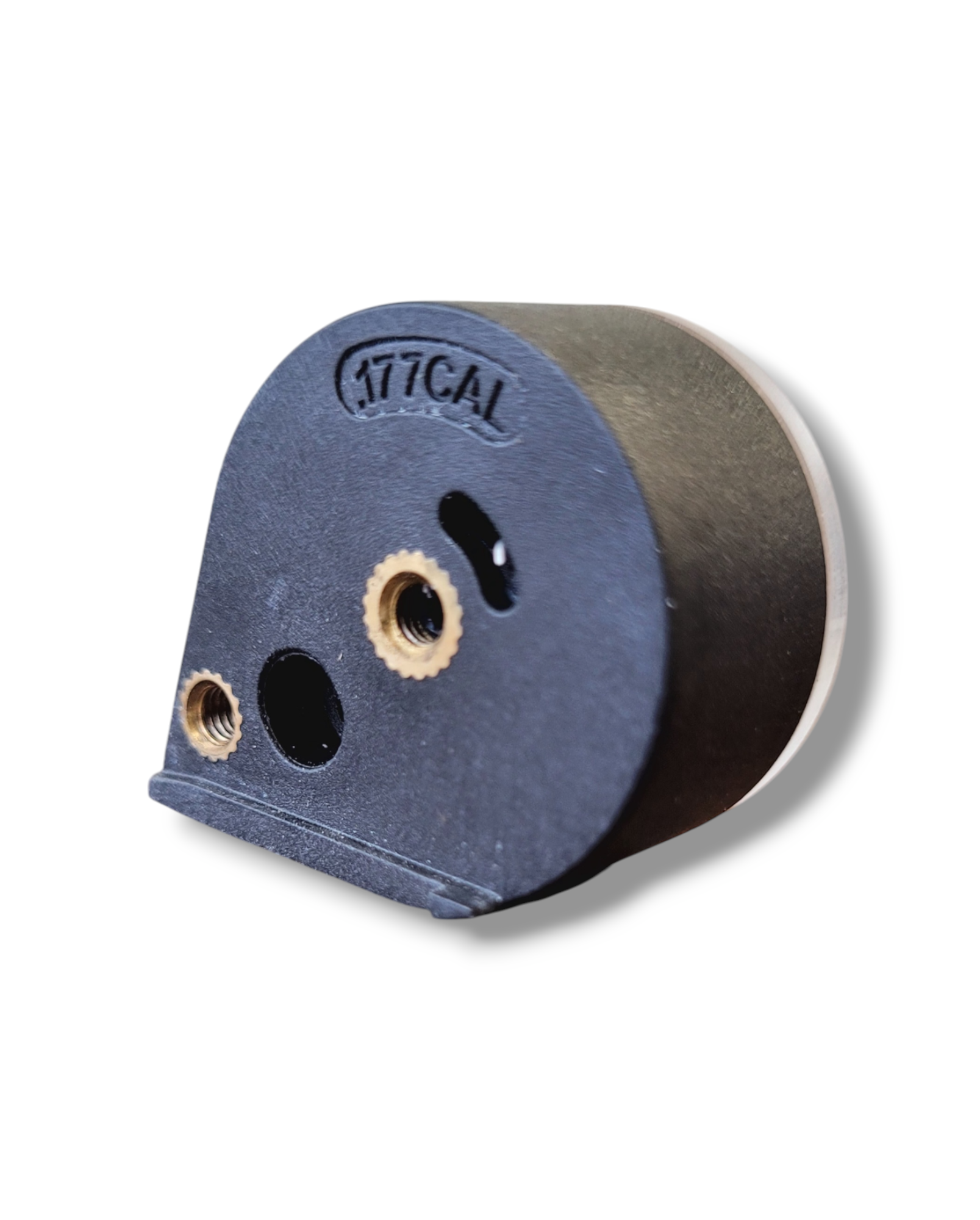

Diana Stormrider .177 Calibre 9-Shot Magazine

Clear View Faceplate: Clear cover allows you to monitor how many shots are left inside the chamber without removing the magazine.
Flawless Auto-Indexing: The internal spring mechanism rotates perfectly into alignment each time the rifle's bolt is retracted.
Magnetic Retention: Securely seats into the rifle's breech block utilizing magnetic alignment to prevent slipping during rapid fire.
Compact Profiling: Low-profile build allows compatibility with most medium-to-high scope ring mounts without obstruction.

1. Initial Pre-Tensioning
- Hold the magazine with the clear plastic cover facing up.
- Rotate the clear cover counter-clockwise against the spring tension until it stops at the final chamber.
2. Inserting the First Pellet
- While holding the clear cover against the spring tension, flip the magazine over (clear face down).
- Insert the first pellet skirt-first (tail end) into the single opening on the back. This locks the internal spring mechanism in place.
3. Filling the Remaining Chambers
- Flip the magazine back over so the clear cover faces up.
- Rotate the cover clockwise chamber by chamber, dropping pellets nose-first into each open slot until all 9 slots are filled.
- Slide the clear cover back to its original closed position.
4. Inserting Into the Breech
- Open the bolt of your Diana Stormrider completely.
- Slide the loaded magazine into the breech block from the right side until the magnetic snap confirms it is centered and locked.

Composition, Origin And Care Guidelines

- Category: Spares
- Brand: DIANA
